AeroMark
OPTOELECTRONIC LASER COMPONENT
The AeroMark® is a very high powered, NIR commercial laser component designed for integration into EOIR systems.
SKU
AEROMARK

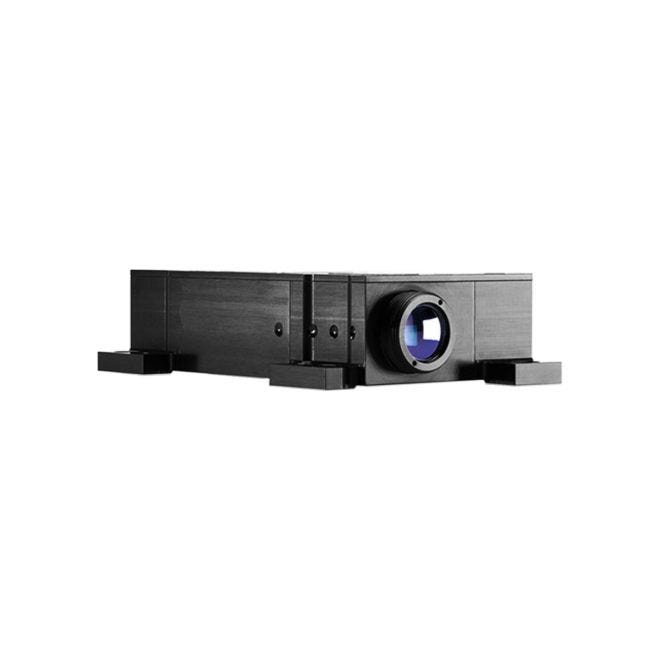

The B.E. Meyers & Co.™ AeroMark® is a very high powered, NIR commercial laser component designed for integration into EOIR systems. The AeroMark® is a one-piece laser that provides a collimated beam that can be used for pointing or illumination for higher magnification sensors. This high powered laser is effective over longer ranges.
| Part Number | D428UAV-227 |
|---|---|
| Beam Divergence | Minimum: 3.7 mrad (0.212°) x 1.0 (0.057°) mrad. Maximum: 5.5 mrad (0.315°) x 1.7 (0.097°) mrad |
| Dimensions | 4.16” L x 2.45” W x 1.03" H |
| Housing | 6061-T6 Black Anodized Aluminum, Stainless Steel Hardware |
| ITAR-Controlled | Yes |
| Laser Class | 4 |
| Laser Type | IR |
| Lumens | N/A |
| Max Laser Class | 4 |
| Maximum Output Power | 2.9W |
| Model Number | D428UAV-227 |
| Output Power | 2.9W |
| Power Requirements | 3.4A ± .05A |
| Power Source | 9-pin Micro D-type socket connector |
| Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
| Wavelength | 808nm ± 10 nm |
| Weight Total (Kit with Body) | 8.4oz |
| Weight w/o Batteries | 8.4oz |
