IZLID® 200P 24V
INFRARED ZOOM LASER ILLUMINATOR DESIGNATOR

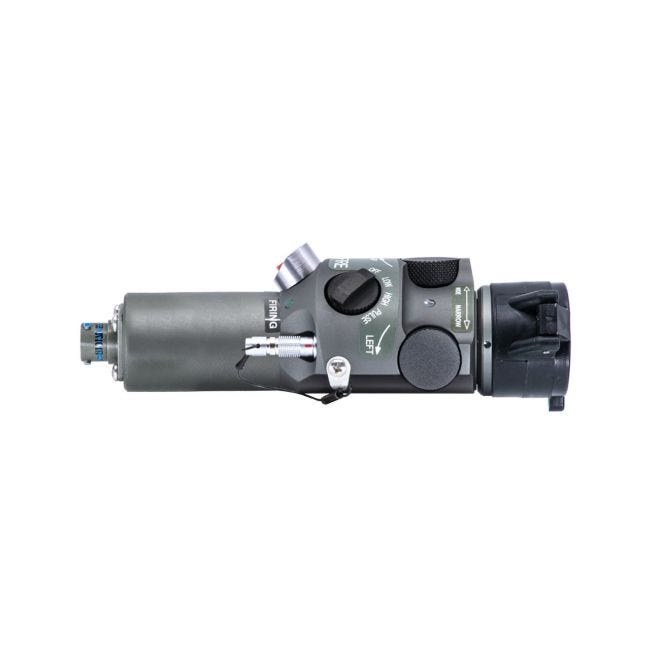

The IZLID® 200P 24V is a lightweight, infrared pointing and illumination laser for use with Night Vision and IR sensors on rotary-wing aircraft and remote weapon stations.
SKU
425P-A2-24V
The IZLID® 200P 24V is a lightweight, infrared pointing and illumination laser for use with Night Vision and IR sensors on rotary-wing aircraft and remote weapon stations. Featuring an adjustable beam divergence, and three preset power outputs: High, Low, and Pulse, the IZLID® 200P 24V offers maximum flexibility in a compact package.
Its high-output power, and adjustable azimuth and elevation, deliver exceptional marking capabilities for rapid target acquisition, resulting in first round hits. The clear, 6° illuminator allows for immediate identification of obstacles in flight, and at landing zones.
The IZLID® 200P 24V features a rugged, aircraft grade aluminum housing that will withstand the most extreme environmental conditions.
| Part Number | 425P-A2-24V |
|---|---|
| Azimuth & Elevation | 0.36 mrad |
| Beam Divergence | Narrow: 0.30 mrad (0.017°) Horizontal. 0.20 mrad (0.011°) Vertical. Wide: 110.0 mrad (6.30°) Horizontal. 55.0 mrad (3.15°) Vertical |
| Dimensions | 6.39” L x 1.70” W x 1.8” H |
| Housing | 6061-T6 Anodized Aluminum, Matte Finish, O-ring Seals |
| ITAR-Controlled | Yes |
| Laser Class | 3B |
| Laser Type | IR |
| Lumens | N/A |
| Max Altitude | 50,000 Ft. |
| Max Laser Class | 3B |
| Maximum Output Power | 195 mW |
| Model Number | 425P-A2-24V |
| Operational Temp | 0°C to +50°C |
| Operational Temperature Range | 0°C to +50°C |
| Output Modes | Low // High // 3-5Hz Pulse |
| Output Power | 105 mW - 195 mW |
| Output Power Modes | Low // High // 3-5Hz Pulse |
| Restriction | Sales restricted to Federal, State and local government law enforcement agencies through a direct purchase order. |
| Storage Temperature Range | -40°C to +70°C |
| Wavelength | 830nm ± 10nm |
| Weight Total (Kit with Body) | 9.6 oz |
| Weight w/o Batteries | N/A |
